Logging

Logging is crucial if something goes wrong, to understand exactly what went wrong, when it went wrong, and where it happened.

OpenSensorHub logs errors and other messages both behind the scenes, and in the web-based admin interface.

Admin UI​

Summaries of both error messages and status messages will appear at the top of each module.

If you see in the sidebar that a module has thrown an error, please select that module and view the summary at the top.

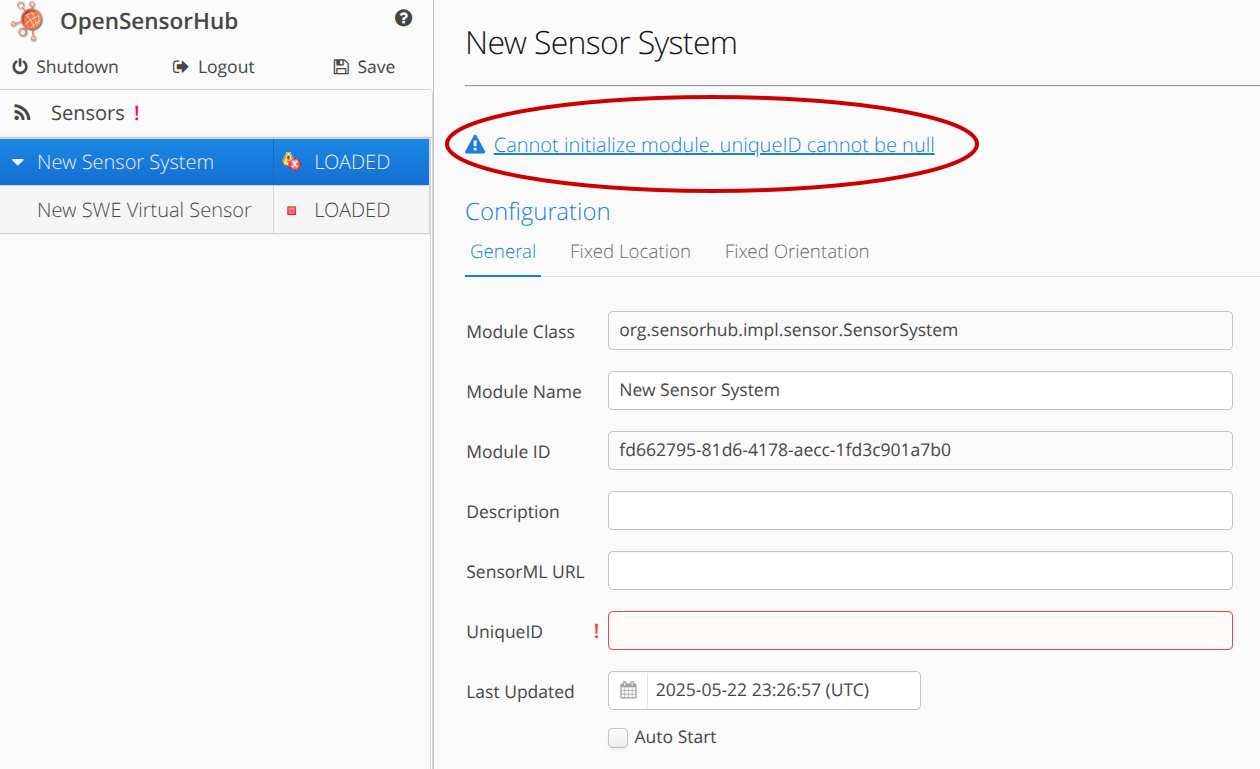

In this instance, our module failed to initialize because I did not specify a Unique ID in the configuration.

Module error summary

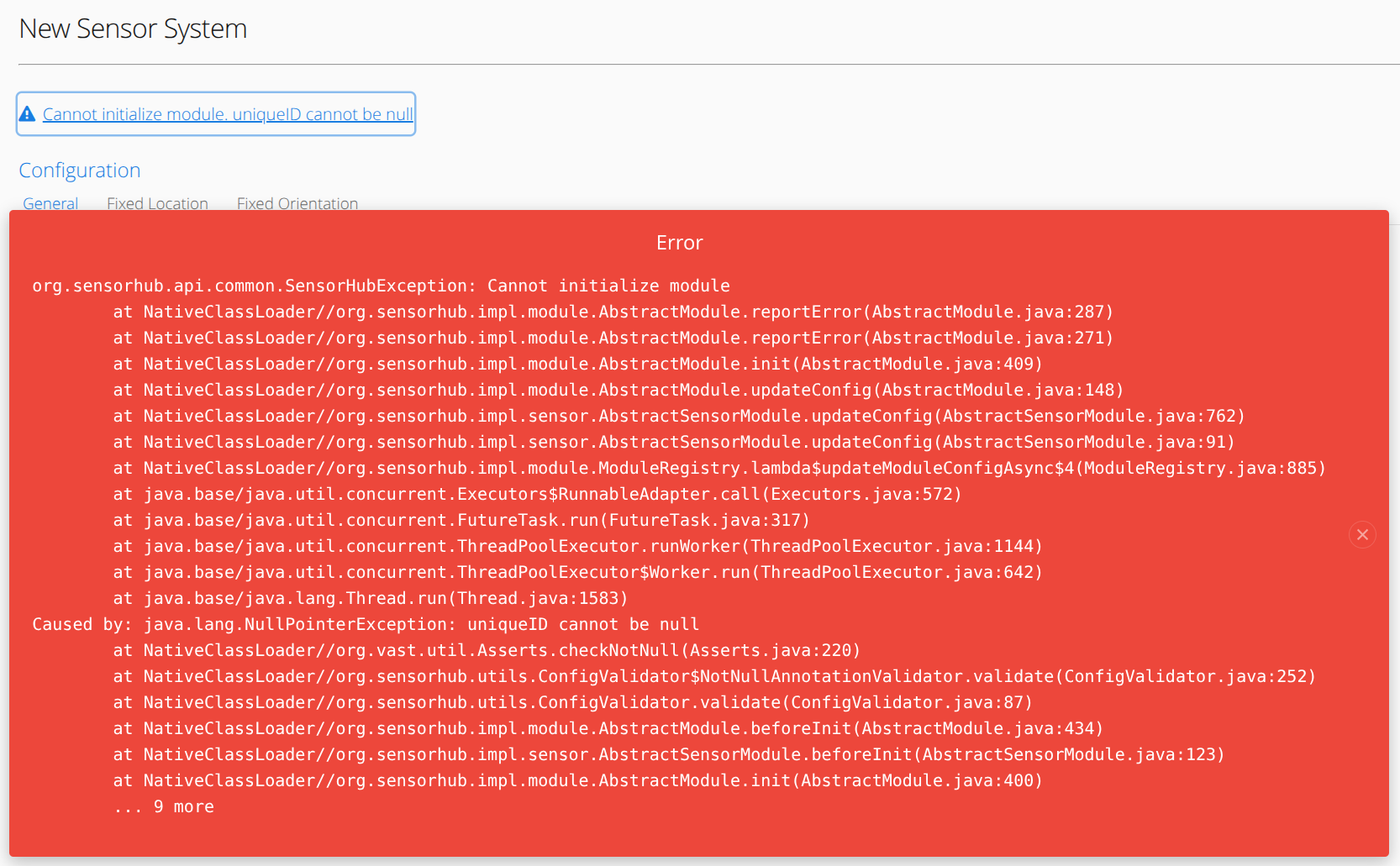

If you want a more detailed description of the error, or stack trace, you can click on the error summary to bring up the stack trace, which is always fully logged in the terminal, as well.


Log Files​

By default, DEBUG and higher-severity log messages will be enabled and printed in the terminal when running an OpenSensorHub node. However, you are able to configure which log levels are printed in both the terminal and persistent log files.

logback.xml​

In your OpenSensorHub node, /osh-node-*.*.*/config/logback.xml will contain configuration for terminal and persistent logging.

Below, you will see the default logback.xml file. Here, you have the option to change the level of printed log messages, where the logs are saved, size of logs, etc.

/osh-node-*.*.*/config/logback.xml
<?xml version="1.0" encoding="UTF-8"?>
<configuration>

  <!-- general logging in console -->
  <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
    <encoder>
      <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} %-5level %logger{0} [%thread] - %msg%n</pattern>
    </encoder>
  </appender>

  <!-- individual module log files -->
  <property name="MODULE_ID" value="${MODULE_ID:-.}" />
  <appender name="MODULE_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
      <file>.moduledata/${MODULE_ID}/log.txt</file>
    <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
      <fileNamePattern>.moduledata/${MODULE_ID}/log.%d{yyyy-MM-dd}.%i.txt</fileNamePattern>
      <maxFileSize>10MB</maxFileSize>
      <maxHistory>30</maxHistory>
      <totalSizeCap>100MB</totalSizeCap>
    </rollingPolicy>
    <encoder>
      <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} %-5level [%thread] - %msg%n</pattern>
    </encoder>
  </appender>

  <root level="debug">
    <appender-ref ref="STDOUT" />
  </root>
  <logger name="org.sensorhub" level="debug">
    <appender-ref ref="MODULE_FILE" />
  </logger>
  <logger name="org.eclipse.jetty" level="warn" />
  <logger name="org.vast" level="warn"/>

</configuration>

Historic Logs​

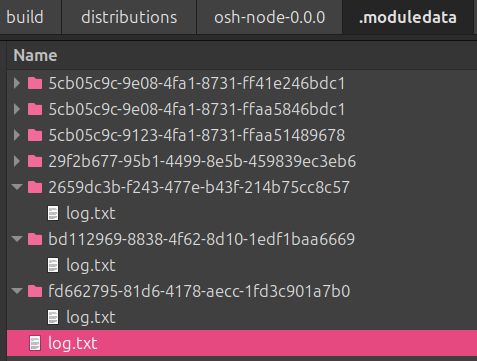

By default, logs will be stored in a hidden .moduledata directory at the root of your node. In this directory, you will find a single log.txt which contains the latest logs from all modules. You will also find several other directories, labeled by their corresponding module ID; these are for individual module log files.

Log files directory structure
