Setting up Node Development Template
Requirements
- Java 17+
- Gradle 7.3+
- Git
The Code
The following clones the OpenSensorHub node development template.
git clone --recursive https://github.com/opensensorhub/osh-node-dev-template.git
The --recursive flag is required because the repository contains submodules.
What's Included

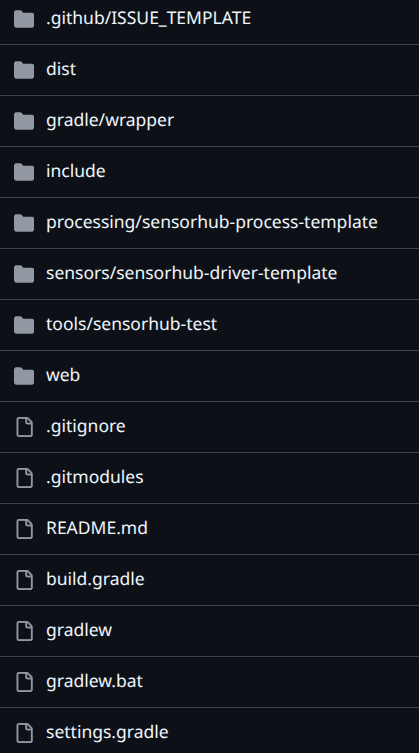

Below is everything included in osh-node-dev-template, along with a table explaining each file/directory.
| File/Directory | Purpose |
|---|---|
| .github/ISSUE_TEMPLATE | Issue templates to create GitHub issues. |
| dist/config | Config files required in a build. All config files from here will be output in the build's config directory as specified in the root build.gradle |
| dist/scripts | Scripts to launch the built node (and perform other setup). These will be included in the build at the built node's root directory. |
| gradle/wrapper | Configuration for using Gradle Wrapper, which is used for building an OSH node. Here you may update the Gradle Wrapper version to use Java 21+. |
| include/osh-addons | Additional OSH modules that can be used as dependencies for your modules or built with the OSH node. These include drivers, processes, services, etc. |
| include/osh-core | Core modules required for an OSH node to work. These modules include the source code for an OSH node, and APIs for creating additional modules. |
| processing | Local processing modules. A template for a SensorML process is included in this directory. |
| sensors | Local sensor driver modules. A template for a simulated sensor driver is included in this directory. |
| tools/sensorhub-test | A test module to be used with a debugger, for running a node and any drivers, processes, or other modules in debug mode. Please see Debugging |
| web | Static web files to be served by the built OSH node. This directory will be included in the built node under web. |
| build.gradle | Gradle build configuration. This is where you will define what submodules to build, the distribution structure, and other basic configuration. |
| settings.gradle | This is where you declare all dependencies to be used by submodules and modules built by build.gradle. |
| gradlew | Executable for performing Gradle tasks. To build (without running tests), use ./gradlew build -x test. |
When creating a sensor driver, process, or other module, be sure to move your module to include/osh-addons and create pull requests targeting OpenSensorHub/osh-addons on the master branch.
Please refer to the Contribution Guide.
Building
Use Gradle Wrapper to build.
./gradlew build -x test
This will build an OSH node in osh-node-dev-template/build/distributions/osh-node-*.*.*.zip.
Upon unzipping you will find configuration files in /config, launch scripts, all built modules as JAR files in /lib, static web files in /web, and a few more files included in a build.
